Up and Running with Metal, Part 2: Drawing Triangles

In our inaugural post of the series, we got a glimpse of many of the essential moving parts of the Metal framework: devices, textures, command buffers, and command queues. Although that post was long, it couldn’t possibly cover all these things in detail. This post will add a little more depth to the discussion of the parts of Metal that are used when rendering geometry. In particular, we’ll take a trip through the Metal rendering pipeline, introduce functions and libraries, and issue our first draw calls.

The end goal of this post is to show you how to start rendering actual geometry with Metal. The triangles we draw will only be in 2D. Future posts will introduce the math necessary to draw 3D shapes and eventually animate 3D models.

Download the sample code for this post here.

Setup

The initializer of the MetalView class has been refactored to call a sequence of methods that will do all the work necessary to get us ready to render:

[self buildDevice];
[self buildVertexBuffers];
[self buildPipeline];

-buildDevice is precisely the same code that used to be included directly in the init method, as we saw in the previous post:

- (void)buildDevice
{
    _device = MTLCreateSystemDefaultDevice();
    _metalLayer = (CAMetalLayer *)[self layer];
    _metalLayer.device = _device;
    _metalLayer.pixelFormat = MTLPixelFormatBGRA8Unorm;
}

The definitions of the other two methods will be given in the sections below.

Using Buffers to Store Data

Metal provides a protocol, MTLBuffer, for representing an untyped buffer of bytes with a fixed length. Its interface is very similar to NSData. However, Metal buffers are associated with a particular device, which manages how the data is copied during draw calls.

We will use two separate static arrays to define our geometry, which is a triangle with red, green, and blue vertices. We will then ask Metal to create buffers that contain a copy of this data, and store these buffers in new properties on our MetalView class: positionBuffer and colorBuffer.

- (void)buildVertexBuffers
{
    static const float positions[] =
    {
         0.0,  0.5, 0, 1,
        -0.5, -0.5, 0, 1,
         0.5, -0.5, 0, 1,
    };

    static const float colors[] =
    {
        1, 0, 0, 1,
        0, 1, 0, 1,
        0, 0, 1, 1,
    };

    self.positionBuffer = [self.device newBufferWithBytes:positions
                                                   length:sizeof(positions)
                                                  options:MTLResourceOptionCPUCacheModeDefault];
    self.colorBuffer = [self.device newBufferWithBytes:colors
                                                length:sizeof(colors)
                                               options:MTLResourceOptionCPUCacheModeDefault];
}

You might have noticed that each vertex position is composed of four components, even though we only care about the x and y positions (since we’re drawing a 2D triangle). This is because Metal works most naturally in 4D homogeneous coordinates, where each point has x, y, z, and w coordinates, with w fixed at 1. The reasons for this involve the mathematics of projective geometry, which is a topic for future posts.

In order to simplify the math we need to do in our shaders, the points are specified in normalized device coordinates, where the x-axis runs from -1 to 1 going left to right, and the y-axis runs from -1 to 1 from bottom to top.

Each color is composed of the familiar red, green, blue and alpha components.

Now, let’s look at the vertex and fragment functions that will be processing this data when we draw.

Functions and Libraries

Functions (a.k.a. Shaders)

Modern graphics libraries provide a “programmable pipeline,” meaning that they allow a lot of the operations carried out by the GPU to be specified by small programs applied to each vertex or pixel. These are commonly referred to as “shaders”. This is a poor name, since shaders are responsible for much more than calculating the shading (color) of pixels. No Metal class actually has “shader” in the name, but by convention, vertex and fragment functions are often called shaders.

To incorporate Metal shading code into our project, we need to add a Metal source file to our project to contain the shaders that will process our vertices and fragments.

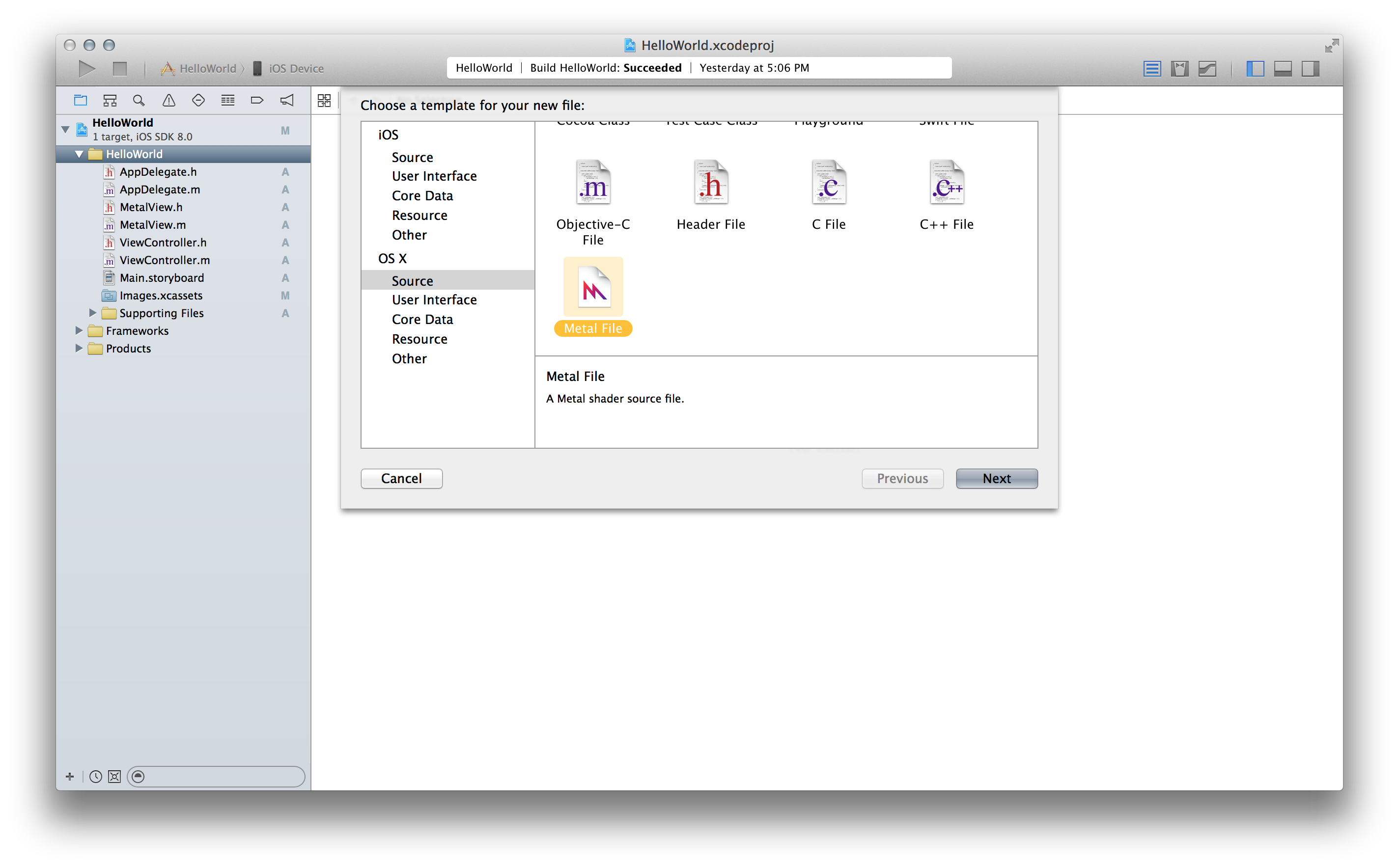

Adding a Metal shader source file in Xcode
Adding a Metal shader source file in Xcode

Here is the source of Shaders.metal:

using namespace metal;

struct ColoredVertex
{
    float4 position [[position]];
    float4 color;
};

vertex ColoredVertex vertex_main(constant float4 *position [[buffer(0)]],
                                 constant float4 *color [[buffer(1)]],
                                 uint vid [[vertex_id]])
{
    ColoredVertex vert;
    vert.position = position[vid];
    vert.color = color[vid];
    return vert;
}

fragment float4 fragment_main(ColoredVertex vert [[stage_in]])
{
    return vert.color;
}

The vertex_main function will be run on each vertex that we draw, while the fragment_main function will be run on (essentially) every pixel that we draw. Each function is preceded by a function qualifier, which signals how it will be used. In this listing we see vertex and fragment qualifiers. There is also a kernel function qualifier for compute kernels.

We define a struct, ColoredVertex, that will store the result of the vertex function. The vertex function’s parameters correspond to the vertex buffers we created earlier. The position parameter has an attribute qualifier of [[buffer(0)]], which will map to an index we provide when setting up our draw call. Likewise with the color parameter. The vid parameter is the index into these buffers that corresponds to the current vertex being processed, and will run from 0 to 2 (once for each point in the triangle).

In the body of vertex_main, we simply copy the incoming position and color data into an intermediate vertex of type ColoredVertex. This essentially packages up the data for the fragment function. If we were doing 3D rendering, quite a bit more math would be involved here (projecting the points from 3D to 2D, per-vertex lighting, etc.)

The fragment function, fragment_main, takes a ColoredVertex qualified with the attribute qualifier [[stage_in]], which identifies it as per-fragment data rather than data that is constant across a draw call. This ColoredVertex does not correspond exactly to an instance of ColoredVertex returned by the vertex function. After all, the vertex function is only invoked three times to draw our triangle, while the fragment function might be called many thousands of times.

Instead, the vert parameter is constructed during the rasterization stage, which determines which pixels are covered by the triangles we draw. This stage occurs between the vertex and fragment function calls. The values at the vertices (i.e., those returned by the vertex function) are interpolated between the vertices to produce the values passed to the fragment shader. This has the effect of transitioning smoothly between colors across the surface of the triangle.

Libraries

Often, graphics libraries require the source of each shader to be compiled separately. Shaders must then be linked together to form a program. Metal introduces a nicer abstraction around shaders: the library. A library is nothing more than a logical group of functions written in the Metal shading language. You’ve already seen above that we have lumped our vertex and fragment function into a single file. This file will be compiled along with the rest of the project, and the compiled shader is included in the app bundle. Metal allows use to easily look up functions by name at runtime as shown in the next listing.

id<MTLLibrary> library = [self.device newDefaultLibrary];

id<MTLFunction> vertexFunc = [library newFunctionWithName:@"vertex_main"];
id<MTLFunction> fragmentFunc = [library newFunctionWithName:@"fragment_main"];

Once you have references to your vertex and fragment functions, you configure your pipeline to use them, and the necessary linkage is performed implicitly by Metal. This is illustrated in the following sections. The code above is incorporated in the -buildPipeline method in the sample code.

The Render Pipeline

It’s natural to think of graphics hardware as a state machine: you set some state (like where to pull data from, and whether draw calls should write to the depth buffer), and that state affects the draw calls you issue afterwards. Most of the API calls in a graphics library like OpenGL exist to allow you to set various aspects of state.

Metal provides a slightly different abstraction of the hardware state machine. Rather than calling API that acts on some global “context” object, Metal allows you to build an object graph that represents a virtual pipeline that takes vertex data from one end and produces a rasterized image on the other end. We’ve already seen part of this in action. By telling our Metal layer which device we’re using, we’ve created one link in the pipeline. Now we’ll discuss a few more kinds of objects that link together to describe the GPU state we want to use when executing render commands: the render pipeline descriptor and render pipeline state.

Render Pipeline Descriptors

A render pipeline descriptor is an object that holds configuration options for a pipeline. In particular, this is where you configure which vertex and fragment shaders will be applied to the geometry that is processed by your draw calls. Here’s the code for creating a descriptor object:

MTLRenderPipelineDescriptor *pipelineDescriptor = [MTLRenderPipelineDescriptor new];
pipelineDescriptor.vertexFunction = vertexFunc;
pipelineDescriptor.fragmentFunction = fragmentFunc;
pipelineDescriptor.colorAttachments[0].pixelFormat = self.metalLayer.pixelFormat;

We will discuss color attachments in a future post. For now, just know that the first color attachment (at index 0) is commonly used as the framebuffer that gets rendered to screen, so it’s important that the layer and the color attachment agree on the pixel format.

Render Pipeline State

A render pipeline state is an object conforming to protocol MTLRenderPipelineState. We create a pipeline state by providing our newly-created pipeline descriptor to our device, storing the result in another property named pipeline.

self.pipeline = [self.device newRenderPipelineStateWithDescriptor:pipelineDescriptor
                                                            error:NULL];

The pipeline state encapsulates the compiled and linked shader program derived from the shaders we set on the descriptor. Therefore, it is a somewhat costly object. Ideally, you should only create one pipeline state object for each unique shader program you need to execute. That’s why we store it in a property on our view class. Later on, we’ll configure our command buffer with it so it can use the compiled shader program to process our geometry.

The code above is the central portion of the -buildPipeline method in the sample code.

Encoding Render Commands

In the previous post, we didn’t interact much with the render command encoder, since we weren’t performing any drawing. This time around, we need to encode actual draw calls into our render command buffer. First, let’s revisit the retrieval of a drawable from the layer and the configuration of a render pass descriptor. This is the beginning of the -redraw method for this sample project:

id<CAMetalDrawable> drawable = [self.metalLayer nextDrawable];
id<MTLTexture> framebufferTexture = drawable.texture;

MTLRenderPassDescriptor *renderPass = [MTLRenderPassDescriptor renderPassDescriptor];
renderPass.colorAttachments[0].texture = framebufferTexture;
renderPass.colorAttachments[0].clearColor = MTLClearColorMake(0.5, 0.5, 0.5, 1);
renderPass.colorAttachments[0].storeAction = MTLStoreActionStore;
renderPass.colorAttachments[0].loadAction = MTLLoadActionClear;

The renderPass object is constructed exactly as before, except that I have chosen a neutral gray color to clear the screen with, instead of the obnoxious red we used last time.

Now, we ask the command encoder to encode our draw call:

id<MTLRenderCommandEncoder> commandEncoder = [commandBuffer renderCommandEncoderWithDescriptor:renderPass];
[commandEncoder setRenderPipelineState:self.pipeline];
[commandEncoder setVertexBuffer:self.positionBuffer offset:0 atIndex:0 ];
[commandEncoder setVertexBuffer:self.colorBuffer offset:0 atIndex:1 ];
[commandEncoder drawPrimitives:MTLPrimitiveTypeTriangle vertexStart:0 vertexCount:3 instanceCount:1];
[commandEncoder endEncoding];

The setVertexBuffer:offset:atIndex: method is used to map from the MTLBuffer objects we created earlier to the parameters of the vertex function in our shader code. Recall that the position parameter was qualified with the [[buffer(0)]] attribute qualifier, and notice that we now provide an index of 0 when preparing our draw call. Likewise with the color buffer index, which was qualified with [[buffer(1)]].

We call the drawPrimitives:vertexStart:vertexCount:instanceCount: method to encode a request to draw our triangle. We pass 0 to the vertexStart parameter so that we begin drawing from the very start of the buffer. We pass 3 for vertexCount because a triangle has three points. The purpose of the instanceCount parameter will be discussed in future posts, but for the time being we set it to 1.

We finish up as before by triggering display of the drawable and committing the command buffer:

[commandBuffer presentDrawable:drawable];
[commandBuffer commit];

These lines round out the new implementation of the -redraw method.

Staying in Sync With CADisplayLink

Now that our -redraw implementation is complete, we need to figure out how to call it repeatedly. We could use a regular old NSTimer, but Core Animation provides a much better way: the CADisplayLink. This is a special kind of timer that is synchronized with the display loop of the device, leading to more consistent timing. Each time the display link fires, we’ll call our -redraw method to update the screen.

We override didMoveToSuperview to configure the display link:

- (void)didMoveToSuperview
{
    [super didMoveToSuperview];
    if (self.superview)
    {
        self.displayLink = [CADisplayLink displayLinkWithTarget:self selector:@selector(displayLinkDidFire:)];
        [self.displayLink addToRunLoop:[NSRunLoop mainRunLoop] forMode:NSRunLoopCommonModes];
    }
    else
    {
        [self.displayLink invalidate];
        self.displayLink = nil;
    }
}

This creates a display link and schedules it with the main run loop. If we are removed from our superview, we invalidate the display link and nil it out.

Sixty times per second, the display link fires and invokes its target method, -displayLinkDidFire:, which in turn calls -redraw:

- (void)displayLinkDidFire:(CADisplayLink *)displayLink
{
    [self redraw];
}

Build and Run

The sample project for this post is located here. If you build and run it, you should see a very colorful triangle appear on the screen:

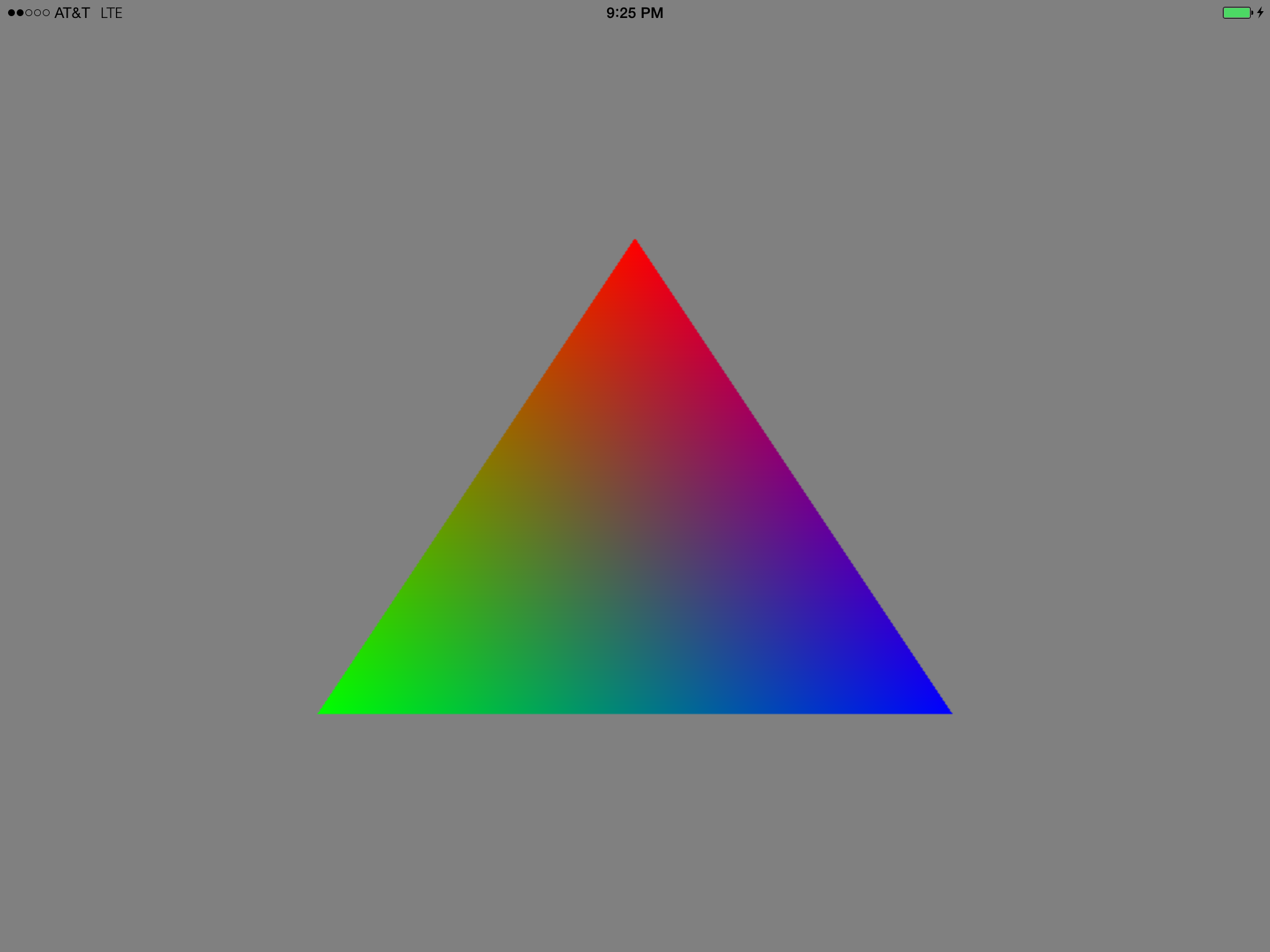

A multicolored triangle, rendered by Metal
A multicolored triangle, rendered by Metal

Conclusion

In this post, we explored some additional features of Metal and finally got to draw something on the screen. In upcoming posts in this series, we’ll get much deeper into the math and the Metal shading language as we explore topics in 3D rendering. Stay tuned!
