Fundamentals of Image Processing in Metal

In this post, we will start exploring the world of image processing with the Metal shading language. We will create a framework capable of representing chains of image filters, then write a pair of image filters that will allow us to adjust the saturation and blur of an image. The end result will be an interactive app that allows you to control the image filter parameters in real-time.

This post is designed to be read after its companion article, Introduction to Compute Programming.

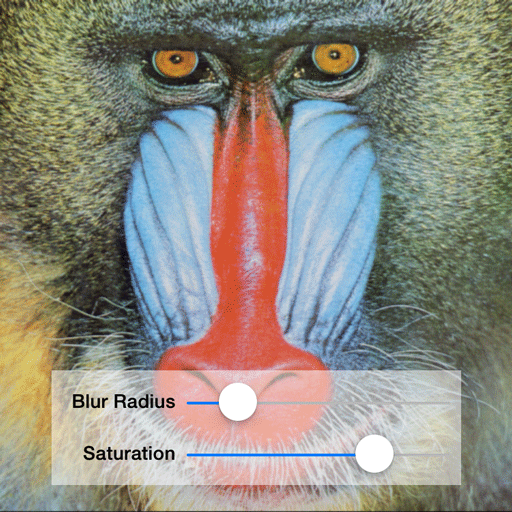

The sample application UI, allowing filter adjustment in real-time.
The sample application UI, allowing filter adjustment in real-time.

You can download the sample project here.

A Look Ahead

To motivate this post a little further, here is a snippet from the sample project. It illustrates how to succinctly create and chain together the desaturation and blur filters controlled by the UI above.

    context = [MBEContext newContext];
    imageProvider = [MBEMainBundleTextureProvider textureProviderWithImageNamed:@"mandrill"
    desaturateFilter = [MBESaturationAdjustmentFilter filterWithSaturationFactor:0.75
    desaturateFilter.provider = imageProvider;
    blurFilter = [MBEGaussianBlur2DFilter filterWithRadius:0.0
    blurFilter.provider = desaturateFilter;
    imageView.image = [UIImage imageWithMTLTexture:blurFilter.texture];

A Framework for Image Processing

Before we talk about how to implement particular kinds of image filters, it will help to have a flexible framework for executing compute shaders. Each filter will the have the ability to configure its compute pipeline with its input and output textures and execute its kernel function.

Texture Providers and Consumers

Since we will be operating on images in the form of textures, we need an abstract way to refer to objects that produce and consume textures. Filters, for example, consume and produce textures, and we will also need a class for generating textures from images in the application bundle.

We abstract the idea of texture production with a protocol named MBETextureProvider:

@protocol MBETextureProvider <NSObject>
@property (nonatomic, readonly) id<MTLTexture> texture;

This simple interface gives us a way to (synchronously) request a texture from a texture provider. It might cause an image filter to perform its filtering procedure, or load an image from disk. The important point is that we know we can retrieve a texture from any object that conforms to MBETextureProvider.

On the other hand, the MBETextureConsumer protocol allows us to tell an object which texture provider it should consume textures from:

@protocol MBETextureConsumer <NSObject>
@property (nonatomic, strong) id<MBETextureProvider> provider;

When a texture consumer wants to operate on a texture, it requests the texture from its provider and operates on it.

An Image Filter Base Class

Abstractly, an image filter transforms one texture into another by performing an arbitrary operation on it. Our MBEImageFilter class does much of the work necessary to invoke a compute shader to produce one texture from another.

The image filter base class conforms to the texture provider and texture consumer protocols just discussed. This allows us to chain filters together to perform multiple operations in sequence. Because of the synchronous nature of the command queue managed by the image context, it is guaranteed that each filter completes its work before its successor is allowed to execute.

Here is the relevant portion of the MBEImageFilter class’ interface:

@interface MBEImageFilter : NSObject <MBETextureProvider, MBETextureConsumer>
@property (nonatomic, strong) MBEContext *context;
@property (nonatomic, strong) id<MTLComputePipelineState> pipeline;
@property (nonatomic, strong) id<MTLTexture> internalTexture;
@property (nonatomic, assign, getter=isDirty) BOOL dirty;
- (instancetype)initWithFunctionName:(NSString *)functionName context:(MBEContext *)context;
- (void)configureArgumentTableWithCommandEncoder:(id<MTLComputeCommandEncoder>)commandEncoder;

The filter must be instantiated with a function name and a context. These are used to create a compute pipeline state, which is then stored in the pipeline property.

The image filter maintains an internal texture that it uses as the output texture of its kernel function. This is so it can store the result of its computation and provide it to other filters. It can also be drawn to the screen or converted to an image.

Image filters may have any number of parameters that affect how they carry out their computation. When one of them changes, the internal texture is invalidated and the kernel function must be re-executed. The dirty flag allows filter subclasses to indicate when this is necessary. A filter will only be executed when its dirty flag is set to YES, which is done inside custom property setters.

The image filter base class contains an -applyFilter method that is invoked when it is asked to provide its output texture and it is currently dirty. This method creates a command buffer and command encoder, and dispatches its kernel function as discussed in the previous sections.

Now that we have the necessary machinery in place, let’s talk about a couple of example filters that will put it to use.

Building a Saturation Adjustment Filter

The first filter we will build is a saturation adjustment filter. The filter will have a configurable saturation factor that determines how much the filter should desaturate the input image. This factor can range from 0 to 1. When the saturation factor is 0, the output image will be a grayscale version of the input. For values between 0 and 1, the filter will produce an image in which the colors are more or less muted, by interpolating between the grayscale image and the input image.

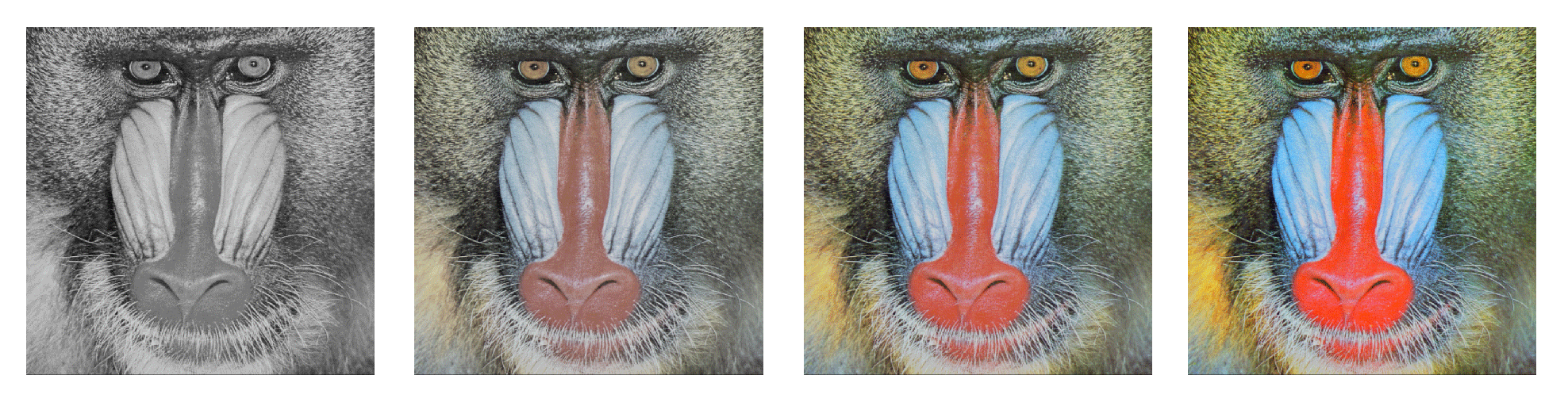

A sequence of images showing how increasing the saturation factor of the filter from 0 to 1 increases image saturation
A sequence of images showing how increasing the saturation factor of the filter from 0 to 1 increases image saturation

Calculating Brightness from RGB

Every RGB color value has a corresponding brightness value, which we will represent by the symbol Y':

Y' = 0.299 R + 0.587 G + 0.114 B

Note that the factors in the formula sum to 1. Their values are based on human perception of the intensity of different primary colors of light: the human eye is most sensitive to green light, followed by red light, and finally blue light. (These values are published as part of ITU-R Recommendation BT.601-7, section 2.5.1, if you care to read all the details.)

Replacing each color in an image with a gray pixel of its corresponding brightness results in a completely desaturated image that has the same perceptual brightness as the original image. This will be the task of our desaturation kernel function, which is presented below.

The Shader

To support passing the saturation factor to our kernel function, we create a single-membered struct called AdjustSaturationUniforms:

struct AdjustSaturationUniforms
    float saturationFactor;

The kernel function itself takes an input texture, an output texture, a reference to the uniform struct, and a 2D vector of integers with an attribute we haven’t seen before: thread_position_in_grid.

Recall from the previous article that we dispatch a two-dimensional set of threadgroups whose size is calculated from the dimensions of the source texture. The thread_position_in_grid attribute tells Metal to generate a coordinate vector that tells us where we are in the 2D grid that spans the entire dispatched set of work items, i.e. our current coordinates in the source texture.

We specify the intended access pattern for each texture parameter: access::read for the input texture, and access::write for the output texture. This restricts the set of functions we can call on these parameters.

kernel void adjust_saturation(texture2d<float, access::read> inTexture [[texture(0)]],
                              texture2d<float, access::write> outTexture [[texture(1)]],
                              constant AdjustSaturationUniforms &uniforms [[buffer(0)]],
                              uint2 gid [[thread_position_in_grid]])
    float4 inColor =;
    float value = dot(inColor.rgb, float3(0.299, 0.587, 0.114));
    float4 grayColor(value, value, value, 1.0);
    float4 outColor = mix(grayColor, inColor, uniforms.saturationFactor);
    outTexture.write(outColor, gid);

We read the source texel’s color and calculate its brightness value based on the formula presented earlier. The dot function allows us to do this more succinctly than doing the three multiplications and two additions separately. We then generate a new color by duplicating the brightness into the RGB components, which makes a shade of gray.

To calculate the partially-desaturated output color, we use a function from the Metal standard library: mix, which takes two colors and a factor between 0 and 1. If the factor is 0, the first color is returned, and if it is 1, the second color is returned. In between, it blends them together using linear interpolation.

Finally, we write the resulting desaturated color into the output texture.

The Saturation Adjustment Class

In order to drive the saturation adjustment kernel, we need to extend the image filter base class. This subclass is named MBESaturationAdjustmentFilter:

@interface MBESaturationAdjustmentFilter : MBEImageFilter
@property (nonatomic, assign) float saturationFactor;
+ (instancetype)filterWithSaturationFactor:(float)saturation context:(MBEContext *)context;

Setting the saturationFactor property causes the filter to set its dirty property, which causes the desaturated image to be re-computed lazily when its texture property is requested.

The subclass’ implementation of -configureArgumentTableWithCommandEncoder: consists of boilerplate to copy the saturation factor into a Metal buffer. It is not shown here.

With that, we have a complete filter class and kernel function for performing image desaturation.


The next type of image filter we will look at is the blur filter.

Blurring an image involves mixing the color of each texel with the colors of adjacent texels. Mathematically, a blur filter is a weighted average of a neighborhood of texels (it is a kind of convolution). The size of the neighborhood is called the radius of the filter. A small radius will average fewer texels together and produce a less blurry image.

Box Blur

The simplest kind of blur is a box blur. The box blur gives equal weight to all the nearby texels, computing their average. Box blurs are easy to compute, but can produce ugly artifacts, since they give undue weight to noise.

Suppose we choose a box blur of radius 1. Then each texel in the output image will be the average of the input texel and its 8 nearest neighbors. Each of the 9 colors is given an equal weight of 1/9.

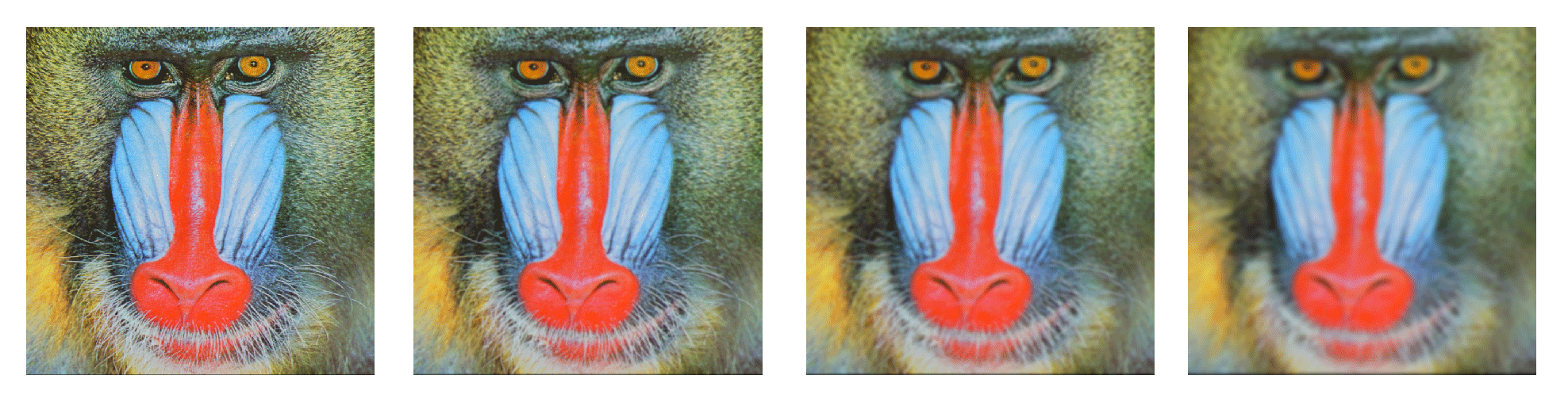

A box blur filter averages the neighborhood around each texel.
A box blur filter averages the neighborhood around each texel.

Box blurs are easy, but they don’t produce very satisfying results. Instead, we will use a somewhat more sophisticated blur filter, the Gaussian blur.

Gaussian Blur

In contrast to the box blur, the Gaussian blur gives unequal weights to the neighboring texels, giving more weight to the texels that are closer, and less weight to those that are farther away. In fact, the weights are computed according to a 2D normal distribution about the current texel:

G_\sigma(x, y) = \frac{1}{\sqrt{2 \pi \sigma^2}} e^{-\frac{x^2 + y^2}{2 \sigma^2}}

where x and y are the distances along the x and y axis, respectively, between the texel being processed and its neighbor. \sigma is the standard deviation of the distribution and is equal to half the radius by default.

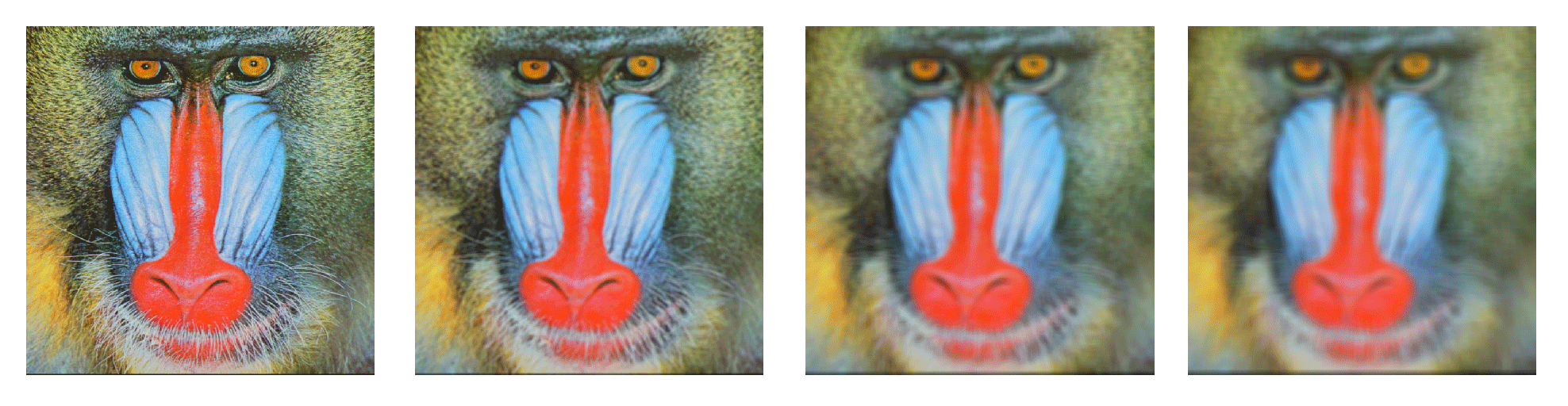

The Gaussian blur filter. Increasing the filter radius creates a smoother image
The Gaussian blur filter. Increasing the filter radius creates a smoother image. The maximum radius shown here is 7.

The Blur Shader

Computing the blur weights for a Gaussian filter can be expensive, especially for a filter with a large radius. Because of this, we will precompute the table of weights and provide it to the Gaussian blur kernel function as a texture. This texture has a pixel format of MTLPixelFormatR32Float, which is a single channel 32-bit floating-point format. Each texel holds a weight between 0 and 1, and all of the weights sum up to 1.

Inside the kernel function, we iterate over the neighborhood of the current texel, reading each texel and its corresponding weight from the look-up table. We then add the weighted color to an accumulated value. Once we have finished adding up all the weighted color values, we write the final color to the output texture.

kernel void gaussian_blur_2d(texture2d<float, access::read> inTexture [[texture(0)]],
                             texture2d<float, access::write> outTexture [[texture(1)]],
                             texture2d<float, access::read> weights [[texture(2)]],
                             uint2 gid [[thread_position_in_grid]])
    int size = weights.get_width();
    int radius = size / 2;

    float4 accumColor(0, 0, 0, 0);
    for (int j = 0; j < size; ++j)
        for (int i = 0; i < size; ++i)
            uint2 kernelIndex(i, j);
            uint2 textureIndex(gid.x + (i - radius), gid.y + (j - radius));
            float4 color =;
            float4 weight =;
            accumColor += weight * color;

    outTexture.write(float4(accumColor.rgb, 1), gid);

The Filter Class

The blur filter class, MBEGaussianBlur2DFilter derives from the image filter base class. Its implementation of -configureArgumentTableWithCommandEncoder: lazily generates the blur weights and sets the look-up table texture on the command encoder as the third parameter (argument table index 2).

- (void)configureArgumentTableWithCommandEncoder:(id<MTLComputeCommandEncoder>)commandEncoder
    if (!self.blurWeightTexture)
        [self generateBlurWeightTexture];
    [commandEncoder setTexture:self.blurWeightTexture atIndex:2];

The -generateBlurWeightTexture method uses the 2D standard distribution formula above to calculate a weight matrix of the appropriate size and copy the values into a Metal texture.

This completes our implementation of the Gaussian blur filter class and shader. Now we just need to revisit how we chain filters together and get the final image to the screen.

Chaining Image Filters

Now we can revisit the code from the beginning of the post with a new appreciation for how it actually works.

    context = [MBEContext newContext];
    imageProvider = [MBEMainBundleTextureProvider textureProviderWithImageNamed:@"mandrill"
    desaturateFilter = [MBESaturationAdjustmentFilter filterWithSaturationFactor:0.75
    desaturateFilter.provider = self.imageProvider;
    blurFilter = [MBEGaussianBlur2DFilter filterWithRadius:0.0
    blurFilter.provider = desaturateFilter;
    imageView.image = [UIImage imageWithMTLTexture:blurFilter.texture];

The main bundle image provider is a utility for loading images into Metal textures and acts as the beginning of the chain. It is set as the texture provider for the desaturate filter, which in turn is set as the texture provider of the blur filter.

Requesting the blur filter’s texture is actually what sets the image filtering process into motion. This causes the blur filter to request the desaturation filter’s texture, which in turn causes the desaturation kernel to be dispatched synchronously. Once it is complete, the blur filter takes the desaturated texture as input and dispatches its own kernel function.

Finally, the blur filter returns its texture, which can then be displayed to the screen.

Displaying a Filtered Texture

In order to display the filtered texture without copying it back to the CPU, we can draw a quadrilateral with Metal, and use the filtered texture as a texture map. Depending on the desired behavior (maintain the aspect ratio while filling the view, maintain the aspect ratio while ensuring the entire image remains visible, stretch the result to fill the screen disregarding aspect ratio, etc.), we need to compute a different set of vertices or a different set of texture coordinates. The sample code shows how to account for these various cases and may make for interesting reading (consult the MBEImageView class).

Driving Image Processing Asynchronously

Above, I mentioned that the filters dispatch their kernel functions synchronously. Since image processing is computationally intensive, we need a way to do the work on a background thread in order to keep the user interface responsive.

Committing a command buffer to a command queue is inherently thread-safe, but controlling other aspects of concurrency are the responsibility of the programmer.

Fortunately, Grand Central Dispatch makes our work easy. Since we will only be invoking image filters in response to user actions on the main thread, we can use a pair of dispatch_async calls to throw our image processing work onto a background thread, asynchronously updating the UI on the main thread when all of the filters are done processing.

We will use a crude mutex in the form of an atomic 64-bit integer property on the view controller that increments every time a UI update is requested. If another user event has not occurred by the time the block executes on the background queue, the image filters are allowed to execute, and the UI is refreshed.

- (void)updateImage
    uint64_t currentJobIndex = self.jobIndex;

    // Grab these values while we're still on the main thread, since we could
    // conceivably get incomplete values by reading them in the background.
    float blurRadius = self.blurRadiusSlider.value;
    float saturation = self.saturationSlider.value;

    dispatch_async(self.renderingQueue, ^{
        if (currentJobIndex != self.jobIndex)

        self.blurFilter.radius = blurRadius;
        self.desaturateFilter.saturationFactor = saturation;

        id<MTLTexture> texture = self.blurFilter.texture;

        dispatch_async(dispatch_get_main_queue(), ^{
            self.imageView.texture = texture;


Download the sample code for this post here.

In this post we introduced the basics of parallel computation with Metal and saw a couple of examples of image filters that can run efficiently on the GPU. Future posts will explore other GPGPU ideas. As always, if you have topic suggestions, feel free to leave them in the comments below.
